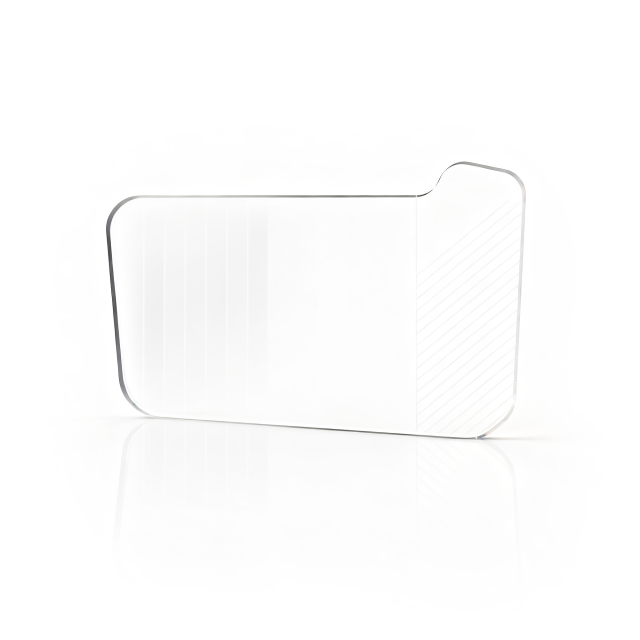

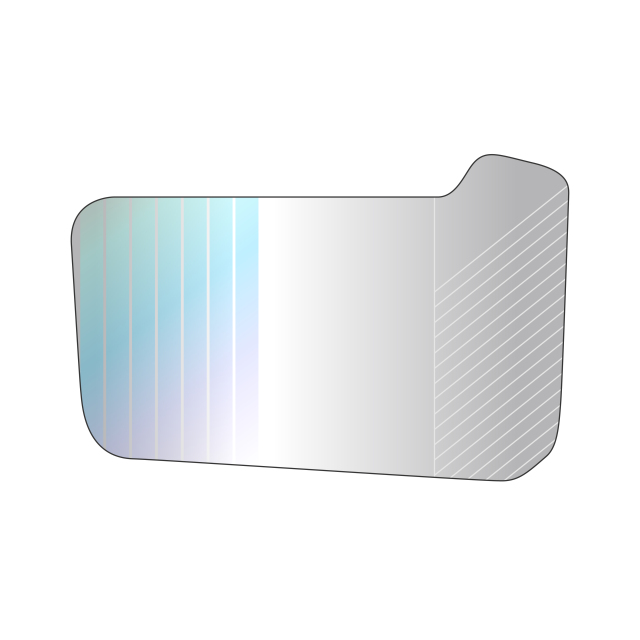

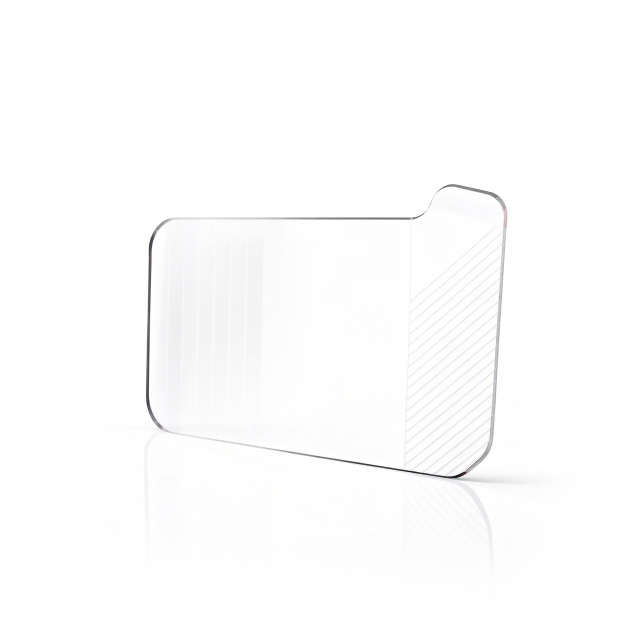

L2-S30

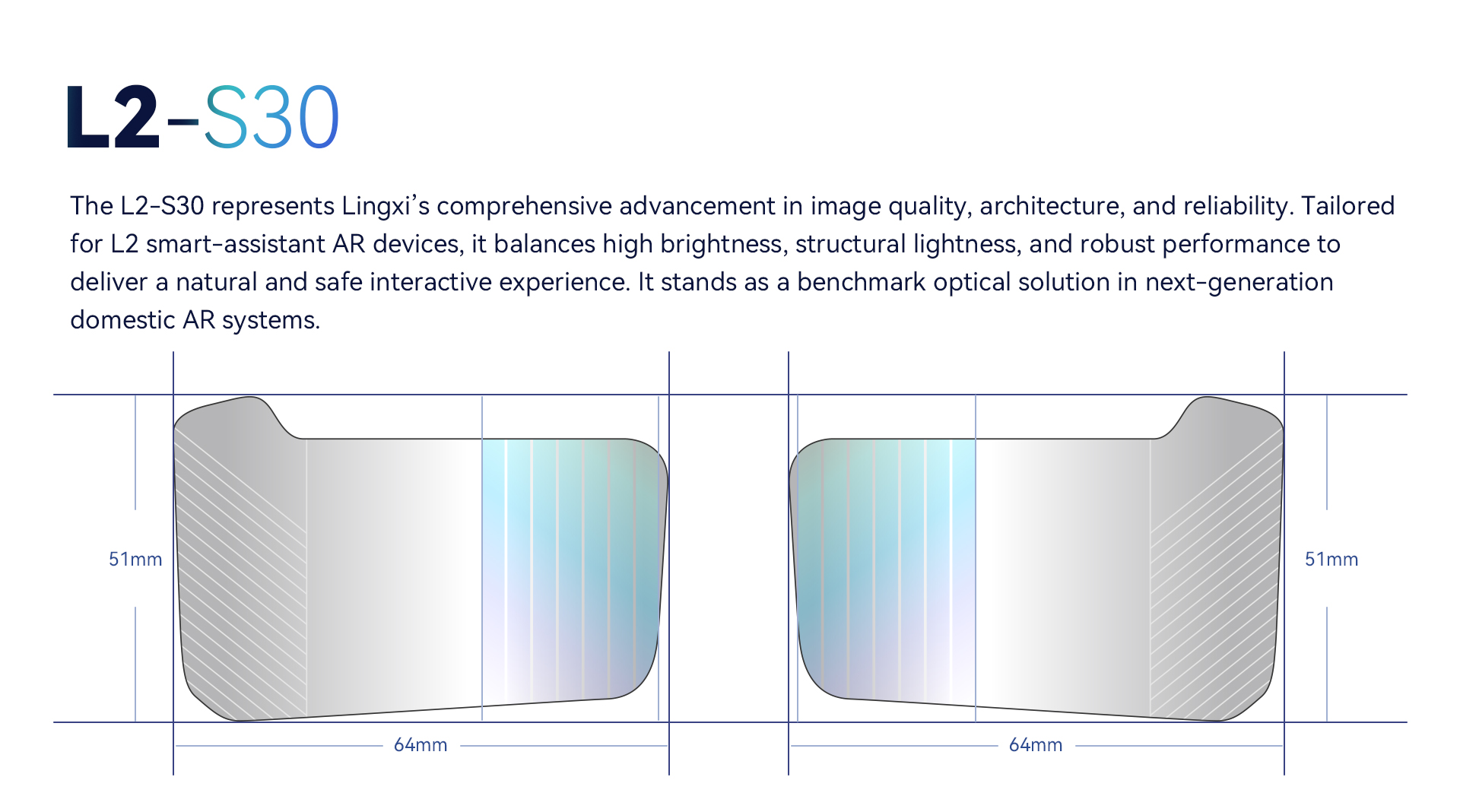

A culmination of LX AR’s decade of optical innovation, the L2-S30 is engineered for L2-class smart-assistant AR applications.

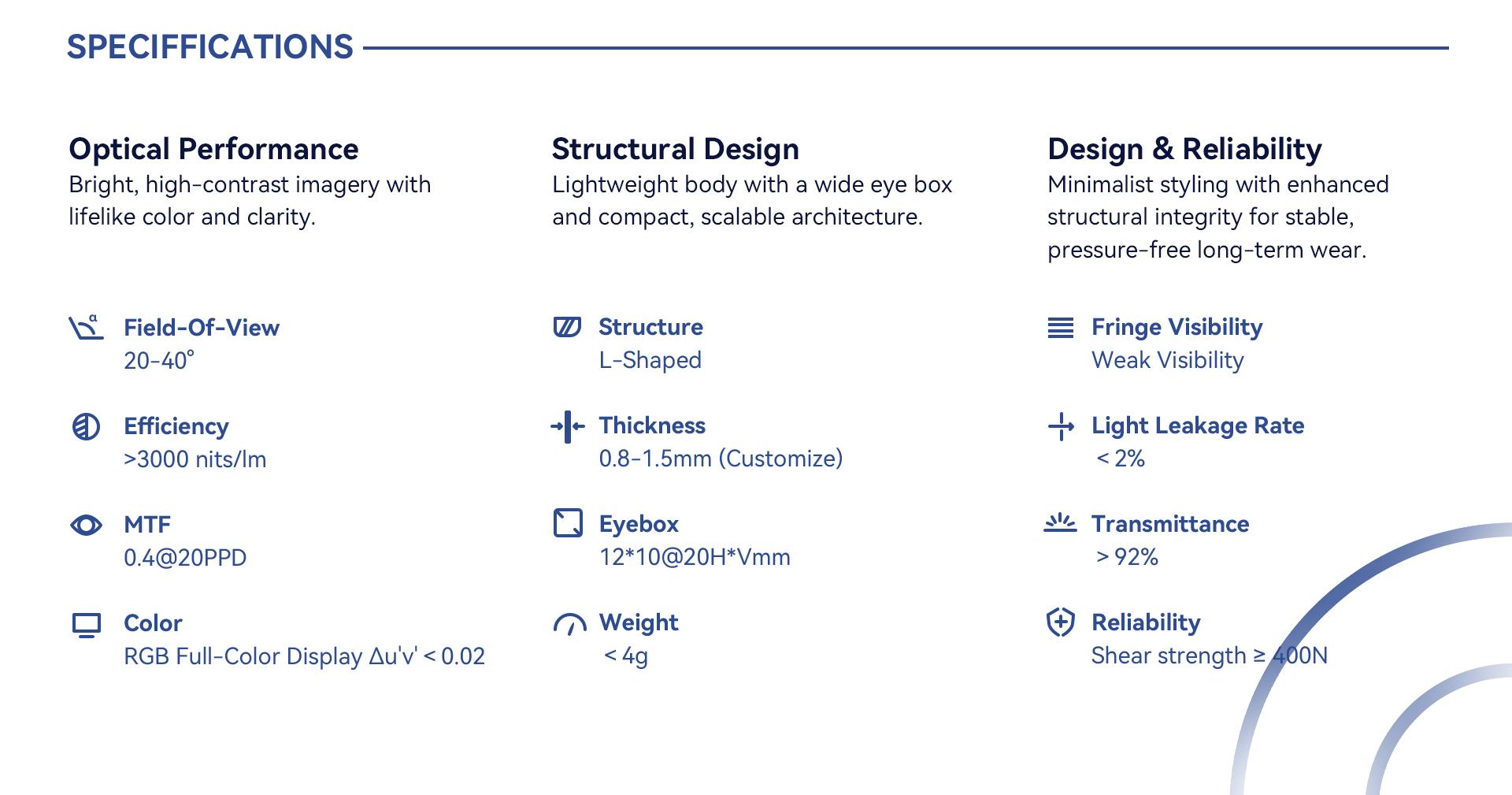

FOV
20-40°
Efficiency
>3000 nits/lm
MTF
0.4@20PPD
Structure
L-Shaped
Eyebox
12*10@20H*Vmm
Weight
<4g
  • L2-S30
  • L2-S30
  • L2-S30
  • Description

  • Customized Module

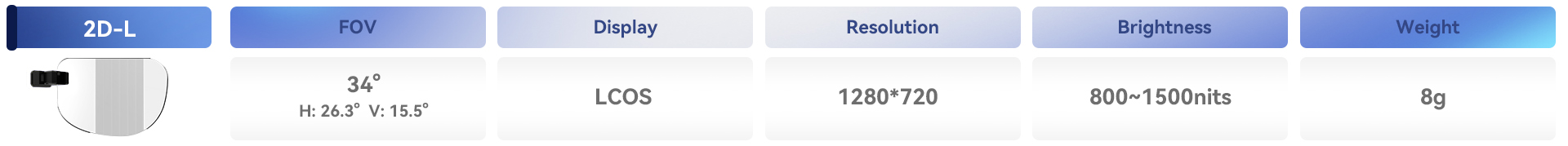

The world’s first true 2D pupil-expanding waveguide module to achieve large-scale mass production.
Engineered for comfort and everyday wear, its compact and ultra-light structure weighs about the same as two sheets of A4 paper. The 2D-L delivers exceptional visual clarity while maintaining superior optical efficiency and ergonomic balance.
