An array waveguide module with a top-down optical configuration, purpose-built for helmet-mounted displays. Supporting both monocular and binocular configurations, it offers full-frame clarity and reliability. Since its mass production in 2021 (90% yield), it has become a trusted optical foundation for industrial, defense, and specialized AR systems.
A next-generation array waveguide module enhanced with a light-rod illumination design. Delivering up to four times the brightness of its predecessor, it expands exit pupil distance and eye-box range for improved immersion and visual comfort. Operable between −20°C and +70°C, it supports customized optics and introduces Lingxi’s proprietary one-dimensional array architecture for a cost-efficient, high-immersion AR experience.

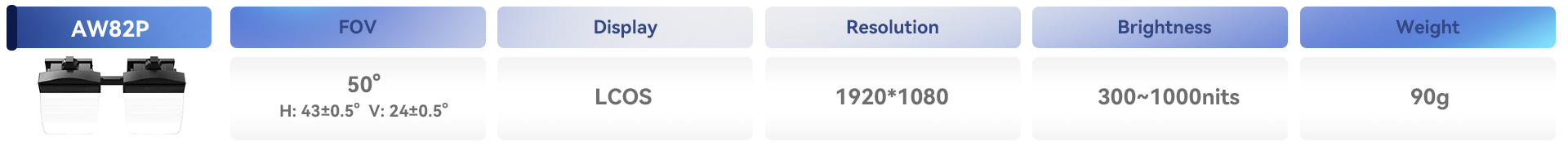

High Brightness High Reliability All-Scenario Adaptability Built upon Lingxi Micro-light’s geometric array waveguide platform and end-to-end optical control expertise, the AWO82P module has been comprehensively upgraded in optical precision, thermal stability, and mechanical integrity. With peak brightness reaching 1000 nits and support for RGB full-color rendering, it delivers stable, high-fidelity imaging under complex lighting and temperature conditions—ensuring precise alignment between virtual visuals and the real environment.
